Product Details
| Basic Information | |

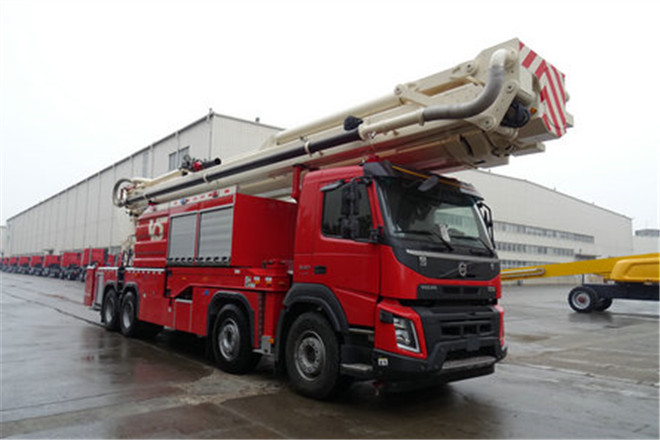

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 12940mm |
| Width | 2500mm |
| Height | 3950mm |
| Curb Weight | 37580kg |
| Gross Weight | 42680kg |
| Seats | 2 |
| Max Speed | 85km/h |
| Chassis | |
| Chassis Model | FM540 |
| Front/Rear Overhang | 1520/2540mm |
| Number of Leaf Springs | 3/3/3/3 |
| Number of Axles | 4 |
| Wheelbase | 1995+4605+1370mm |
| Axle Load | 8380/8980/12780/12540kg |
| Front Wheel Track | 2109/2109mm |
| Rear Wheel Track | 1837/1837mm |
| Approaching/Departuring Angle | 14/° |
| Tire | |
| Number of Tires | 12 |
| Tire | 385/65R22.5/385/65R22.5/315/80R22.5/315/80R22.5 |
| Engine | |
| Model | D13C540S EUV |
| Power | 398kW |
| Brand | Volvo Power Train |
| Displacement | 12777ml |
