| Basic Information | |
| Usage | Fire Extinguishing Truck |

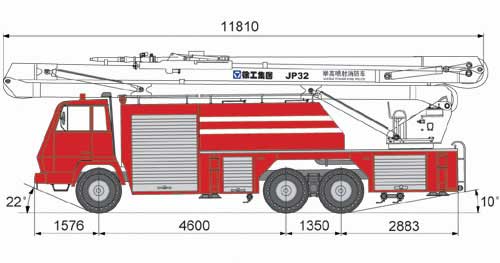

| Length | 11810mm |
| Width | 3995mm |
| Height | 2490mm |
| Curb Weight | 21150kg |
| Gross Weight | 28500kg |
| Max Speed | ≥90km/h |
| Chassis | |
| Wheelbase | 4600, 1350mm |
| Axle Load | 6700 (front axle), 21800 (dual rear axle)kg |
| Front Wheel Track | 1935mm |
| Rear Wheel Track | 1800mm |
| Approaching/Departuring Angle | ≥22/≥10° |
Extinguishant rated loading capacity:
Water(kg): 4000
Foam(kg): 3200

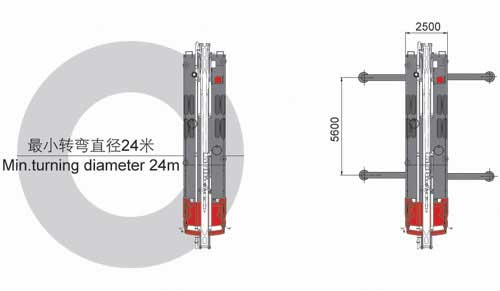

Minimum truing diameter(m): ≤24
Braking system(at speed of 30km/h): ≤10
Minimum ground clearance (mm): 314
Max gradeability(%): ≥25

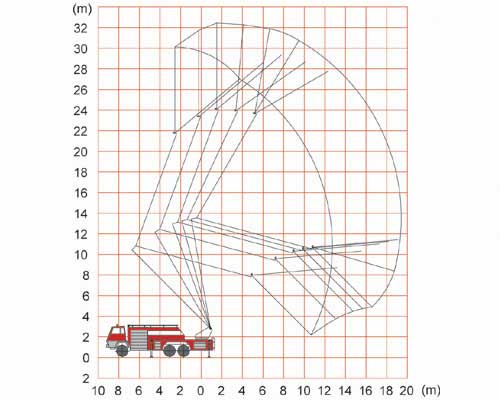

Rated working hetight (m):32
Max working range(m): 19
Outrigger span (longtitude × transverse)(m): 5.6×4.8
Luffing range(°）:
First segment of boom: 0～80°
Second segment of boom: 0～140°
Third segment of boom: 80～210°
Boom action time(S):≤140
Outrigger opening tim(S): ≤40
Rotating speed(r／min)：0～1
Fire pump rated flow(L／s): 50
Fire pump rated pressure (MPa): 1.5
Water monitor rated range(m):≥65
Water monitor rated flow(L/s): 50
Water monitor rated pressure (MPa): ≤1.0
Foam monitor rated range(m): ≥55
Foam monitor rated flow(L/s): 48
Foam monitor rated pressure (MPa):≤1.0
Cannon head swing range: -135°～0° from top to bottom, ±107° from left to right
