Extinguishant rated loading capacity:
Water(kg): 6000/3000
Foam(kg): 3200/6300

Minimum truing diameter(m): ≤24
Braking system(at speed of 30km/h): ≤10
Minimum ground clearance (mm): 339
Max gradeability(%): ≥25

Rated working hetight (m):35

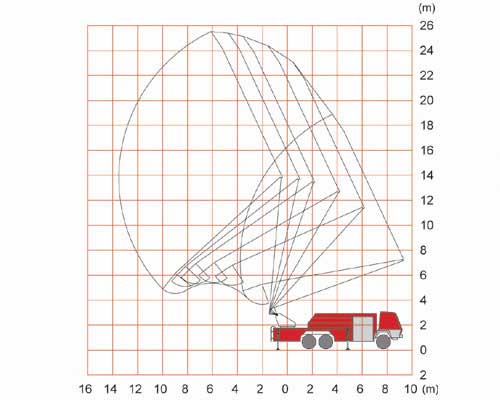

Max working range(m): 13.5
Outrigger span (longtitude × transverse)(m): 5..925×4.8
Luffing range(°）:
First segment of boom: 0～85°
Second segment of boom: 0～150°
Third segment of boom: 80～170°

Boom action time(S):≤90
Outrigger opening tim(S): ≤30
Rotating speed(r／min)：0～1

Fire pump rated flow(L／s): 50
Fire pump rated pressure (MPa): 1.5

Water monitor rated range(m):≥75
Water monitor rated flow(L/s): 50
Water monitor rated pressure (MPa): ≤0.8
Foam monitor rated range(m): ≥60
Foam monitor rated flow(L/s): 48
Foam monitor rated pressure (MPa):≤0.8
Cannon head swing range: -135°～0° from top to bottom, ±107° from left to right
