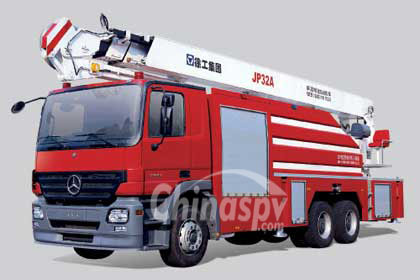

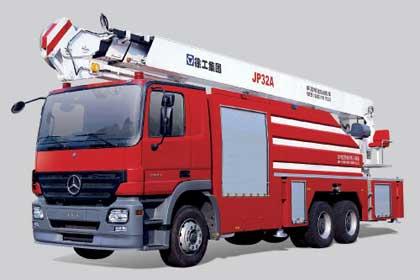

XCMG JP32A water tower fire truck

Get Latest Price
Product Details
Basic Information
Usage Fire Extinguishing Truck

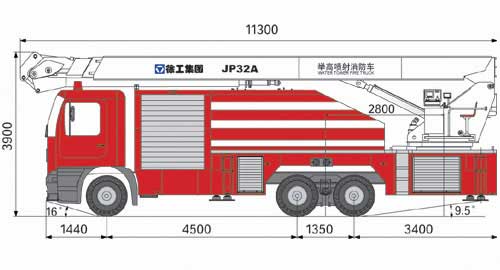

Length 11420mm
Width 2500mm
Height 3900mm
Curb Weight 22850kg
Gross Weight 32000kg
Max Speed ≥90km/h
Chassis
Wheelbase 4500(1wheel-2 wheel),1350(2 wheel-3wheel)mm
Axle Load 5200 (front wheel), 17650(dual rear wheel)kg
Front Wheel Track 2035mm
Rear Wheel Track 1804mm
Approaching/Departuring Angle 16/9.5°

Rated load of extinguishing agent

Water(kg):6000/3000

Foam liquid(kg):6000/3000

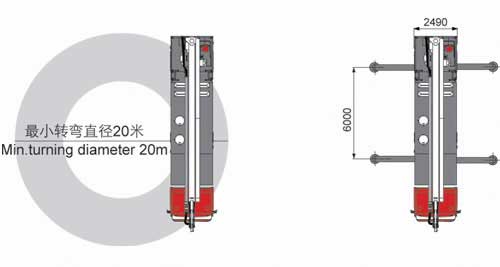

Minimum turning diameter(m):≤20

Braking length (speed is 30Km/h)(m):≤9.5

Minimum ground clearance(mm):290

Max gradability(%):≥25%

Rated height(m):32

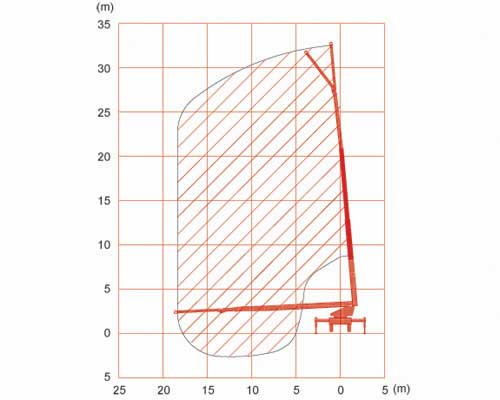

Max operating range ability(m):19

Span(vertical x horizon)(m):6.0×5.4

Scope change range(°):﹣3~85

Moving time of arm support(S):≤110

Span expansion time(S):≤30

Rotation speed(r/min):0~2

Rated flow of fire pump(L/s):70

Rated pressure of fire pump(MPa):1.7

Rated range of water monitor(m):≥85

Rated flow of water monitor (L/s):70

Rated pressure of water monitor (MPa):≤0.8

Rated range of foam monitor (m):≥65

Rated flow of foam monitor (L/s):64

Rated pressure of foam monitor (MPa):≤0.9

Swaying range of monitor

From top to bottom:-135°~0°

From left to right:±107°
