Product Details
| Basic Information | |

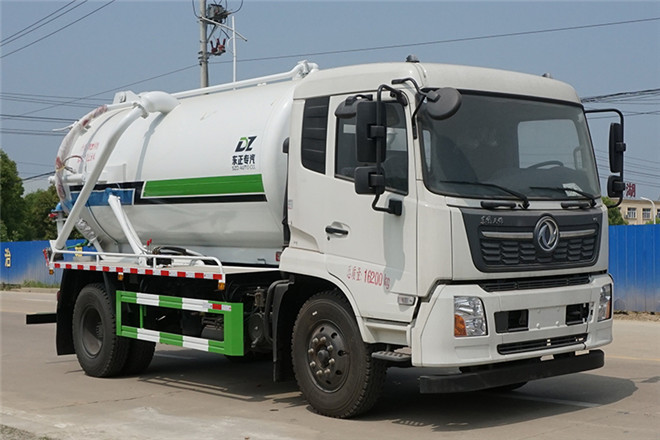

| Usage | Suction-type Sewer Scavenger |
| Fuel Type | Diesel |
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length | 7450mm |
| Width | 2530mm |
| Height | 3380mm |
| Curb Weight | 7400kg |
| Gross Weight | 16200kg |
| Seats | 2,3 |
| Max Speed | 89km/h |
| Chassis | |
| Chassis Model | DFH1160BX1 |
| Front/Rear Overhang | 1430/2070mm |
| Number of Leaf Springs | 11/11+10,11/10+8,8/10+8 |
| Number of Axles | 2 |
| Wheelbase | 3950,4500,4700mm |
| Axle Load | 5600/10600kg |
| Front Wheel Track | 1815,1934,1860mm |
| Rear Wheel Track | 1800,1820mm |
| Approaching/Departuring Angle | 19/13° |
| Tire | |
| Number of Tires | 6 |
| Tire | 9.00R20 16PR,10.00R20 18PR,275/80R22.5 18PR |
| Engine | |
| Model | DDi50E220-60,D4.0NS6B185,D4.0NS6B195 |
| Power | 162,136,143kW |
| Brand | Dongfeng Commercial Vehicle Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement | 5000,4000,4000ml |
