Product Details
| Basic Information | |

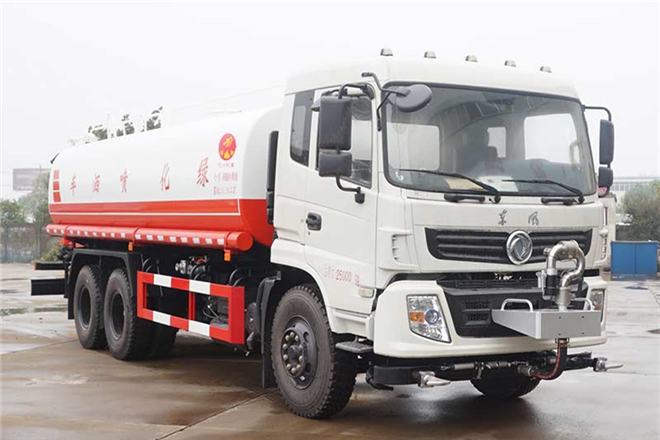

| Usage | Tree Sprinkling Tanker |
| Fuel Type | Diesel |
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length | 10260,10450mm |
| Width | 2500,2550mm |
| Height | 3250,3450mm |
| Curb Weight | 10700kg |
| Gross Weight | 25000kg |
| Seats | 3,2 |
| Max Speed | 89km/h |
| Chassis | |
| Chassis Model | EQ1258GSZ6DJ |
| Front/Rear Overhang | 1475/3085,1515/3045,1475/3275,1515/3235,1475/2805,1515/2765mm |
| Number of Leaf Springs | 8/10,9/10 |
| Number of Axles | 3 |
| Wheelbase | 4350+1350,4750+1350,5900+1350,5350+1350,3400+1350,3650+1350mm |
| Axle Load | 7000/18000(two axles)kg |
| Front Wheel Track | 1860,1940,1960,1985mm |
| Rear Wheel Track | 1750/1750,1860/1860,1880/1880mm |
| Approaching/Departuring Angle | 29/9° |
| Tire | |
| Number of Tires | 10 |
| Tire | 11.00R20 18PR,295/80R22.5 18PR |
| Engine | |
| Model | B6.2NS6B230,B6.2NS6B260,YCS06245-60,YCS06270-60,WP7.300E61,DDi75E300-60,WP8.320E61,YCK05230-60,WP6H245E61 |
| Power | 169,191,180,199,220,220,235,169,180kW |
| Brand | Dongfengg Cummins Engine Co., Ltd.;Dongfengg Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Weichai Power Co., Ltd.;Dongfeng Trucks Co., Ltd.;Weichai Power Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Weichai Power Co., Ltd. |
| Displacement | 6200,6200,6234,6234,7470,7500,7800,5132,6220ml |
