Product Details
| Basic Information | |

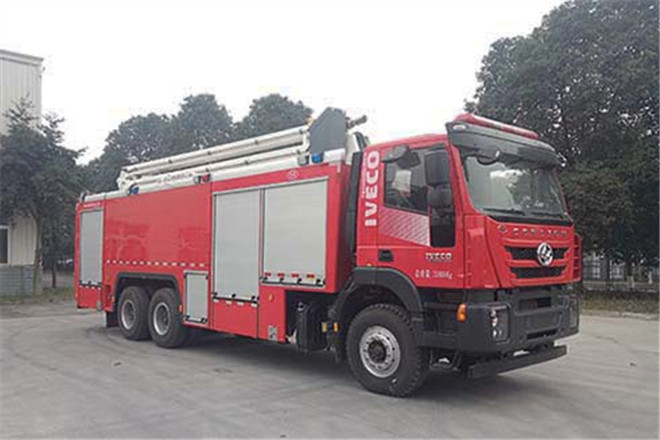

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 10740mm |
| Width | 2500mm |
| Height | 3860mm |
| Curb Weight | 20100kg |
| Gross Weight | 31800kg |
| Seats | 2 |
| Max Speed | 80km/h |
| Chassis | |
| Chassis Model | CQ5346TXHTVG47-594 |
| Front/Rear Overhang | 1435/2905mm |
| Number of Leaf Springs | 9/12,3/4 |
| Number of Axles | 3 |
| Wheelbase | 4700+1400,5000+1400,5900+1400mm |
| Axle Load | 6500/12650/12650kg |
| Front Wheel Track | 2006,2020,2070mm |
| Rear Wheel Track | 1850/1850mm |
| Approaching/Departuring Angle | 19/10° |
| Tire | |
| Number of Tires | 10 |
| Tire | 12.00-20,12.00R20,315/80R22.5 |
| Engine | |
| Model | F2CCE611A*L,F2CCE611B*L,F2CCE611C*L,F2CCE611D*L,F3GCE611B*L,F3GCE611C*L |
| Power | 287,257,235,215,318,288kW |
| Brand | Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd. |
| Displacement | 8709,8709,8709,8709,11120,11120ml |
