Product Details
| Basic Information | |

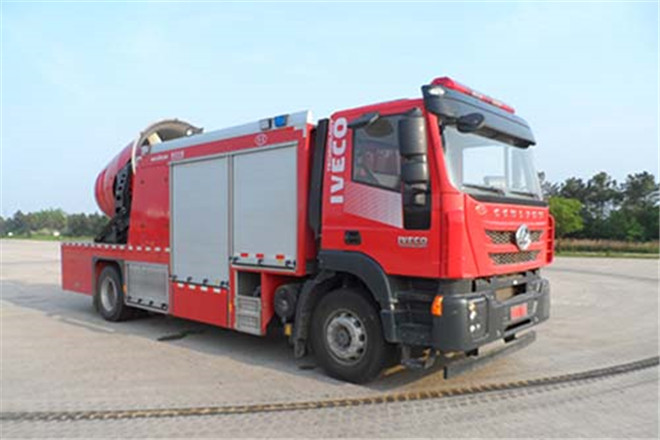

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 9140mm |
| Width | 2525mm |
| Height | 3770mm |
| Curb Weight | 13850kg |
| Gross Weight | 16000kg |
| Seats | 2 |
| Max Speed | 90km/h |
| Chassis | |
| Chassis Model | CQ5196TXHTVG42-461 |
| Front/Rear Overhang | 1435/2205mm |
| Number of Leaf Springs | 9/9+7,3/3+2,1+-/- |
| Number of Axles | 2 |
| Wheelbase | 4200,4400,4600,6000,5500mm |
| Axle Load | 6750/9250kg |
| Front Wheel Track | 2006,2020,2070mm |
| Rear Wheel Track | 1850mm |
| Approaching/Departuring Angle | 19/12° |
| Tire | |
| Number of Tires | 6 |
| Tire | 11.00-20 18PR ,11.00R20 18PR ,12.00-20 18PR ,12.00R20 18PR ,315/80R22.5 18PR,295/80R22.5 18PR ,12R22.5 18PR |
| Engine | |
| Model | F2CCE611B*L,F2CCE611C*L,F2CCE611D*L,F2CCE611A*L |
| Power | 257,235,215,287kW |
| Brand | Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd. |
| Displacement | 8709,8709,8709,8709ml |
