Product Details
| Basic Information | |

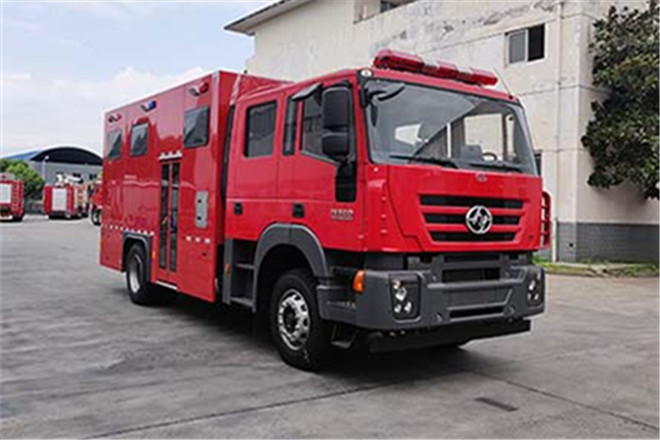

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴemission standards, GB3847-2005 |
| Length | 8400mm |
| Width | 2550mm |
| Height | 3630mm |
| Curb Weight | 13150kg |
| Gross Weight | 13600kg |
| Seats | 2+4 |
| Max Speed | 100km/h |
| Chassis | |
| Chassis Model | CQ5196TXFHTVG42-461D |
| Front/Rear Overhang | 1435/2055mm |
| Number of Leaf Springs | 1+-/-,3/3+2,3/3 |
| Number of Axles | 2 |
| Wheelbase | 4200,4400,4600mm |
| Axle Load | 5500/8100kg |
| Front Wheel Track | 2006mm |
| Rear Wheel Track | 1850mm |
| Approaching/Departuring Angle | 19/12° |
| Tire | |
| Number of Tires | 6 |
| Tire | 315/70R22.5 18PR,295/80R22.5 18PR,11.00R20 18PR |
| Engine | |
| Model | F2CCE611D*LF2CCE611C*LF2CCE611B*LF2CCE611A*L |
| Power | 215,235,257,287kW |
| Brand | Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd. |
| Displacement | 8709,8709,8709,8709ml |
