Product Details
| Basic Information | |

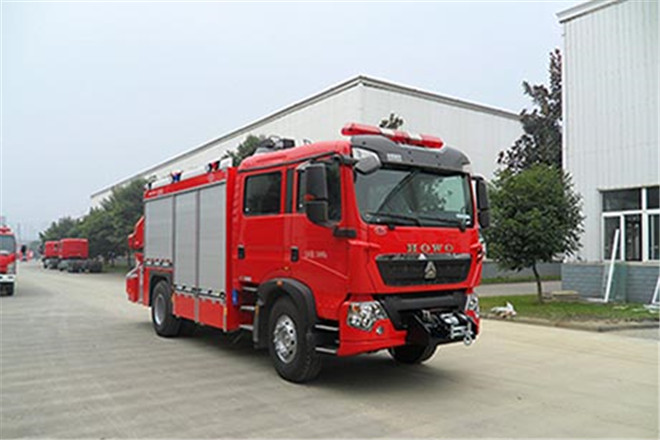

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 9170mm |
| Width | 2500mm |
| Height | 3685mm |
| Curb Weight | 13230kg |
| Gross Weight | 13680kg |
| Seats | 2+4 |
| Max Speed | 95km/h |
| Chassis | |
| Chassis Model | ZZ5207TXFV471GE5 |
| Front/Rear Overhang | 1430/2570mm |
| Number of Leaf Springs | 4/5,4/9+6,10/9+6,11/9+8,3/9+8,3/3+2 |
| Number of Axles | 2 |
| Wheelbase | 4200,4500,4600,4700,5000,5600mm |
| Axle Load | 4810/8870kg |
| Front Wheel Track | 1980,2035mm |
| Rear Wheel Track | 1850mm |
| Approaching/Departuring Angle | 19/12° |
| Tire | |
| Number of Tires | 6 |
| Tire | 315/80R22.5,12.00R20 |
| Engine | |
| Model | MC07.28-50,MC07.31-50,MC07.34-50,MC11.36-50,MC11.40-50 |
| Power | 206,228,248,268,297kW |
| Brand | China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd. |
| Displacement | 6870,6870,6870,10518,10518ml |
