Product Details
| Basic Information | |

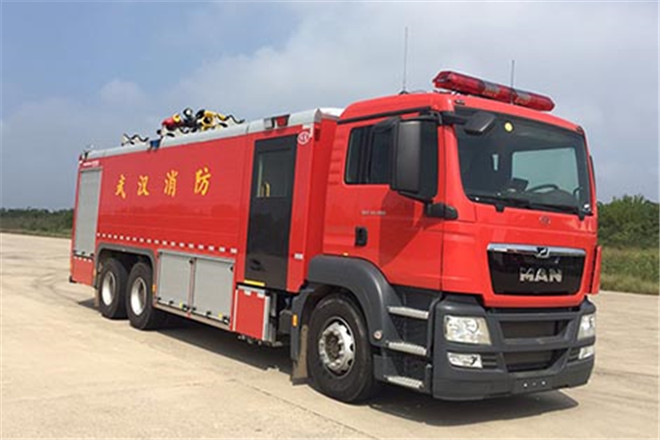

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 10430mm |
| Width | 2500mm |
| Height | 3790mm |
| Curb Weight | 15150kg |
| Gross Weight | 32000kg |
| Seats | 2+4 |
| Max Speed | 85km/h |
| Chassis | |
| Chassis Model | TGS 33.480 |
| Front/Rear Overhang | 1475/2455mm |
| Number of Leaf Springs | 2/5/5 |
| Number of Axles | 3 |
| Wheelbase | 5100+1400mm |
| Axle Load | 7480/12260/12260kg |
| Front Wheel Track | 2048mm |
| Rear Wheel Track | 1804/1804mm |
| Approaching/Departuring Angle | 15/11° |
| Tire | |
| Number of Tires | 10 |
| Tire | 315/80R22.5 |
| Engine | |
| Model | D2676LF40 |
| Power | 356kW |
| Brand | Germany MAN Commercial Vehicle Co., Ltd. |
| Displacement | 12419ml |
