Product Details
| Basic Information | |

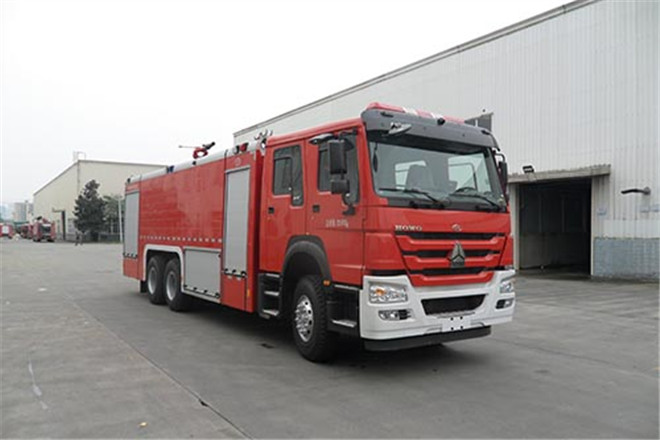

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 10975mm |
| Width | 2500mm |
| Height | 3740mm |
| Curb Weight | 15550kg |
| Gross Weight | 32400kg |
| Seats | 2+4 |
| Max Speed | 85km/h |
| Chassis | |
| Chassis Model | ZZ5347V4647E5 |
| Front/Rear Overhang | 1500/2900mm |
| Number of Leaf Springs | 10/12,10/- |
| Number of Axles | 3 |
| Wheelbase | 3825+1350,3800+1400,4325+1350,4300+1400,4600+1350,4575+1400,5225+1350,5200+1400,5825+1350,5800+1400mm |
| Axle Load | 7740/12300/12360kg |
| Front Wheel Track | 2022,2041mm |
| Rear Wheel Track | 1830/1830mm |
| Approaching/Departuring Angle | 14/10° |
| Tire | |
| Number of Tires | 10 |
| Tire | 315/80R22.5,12.00R20,12.00-20 |
| Engine | |
| Model | D10.34-50,D10.38-50,MC11.36-50,MC11.40-50,MC11.44-50 |
| Power | 249,276,268,297,327kW |
| Brand | China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd |
| Displacement | 9726,9726,10518,10518,10518ml |
