Product Details
| Basic Information | |

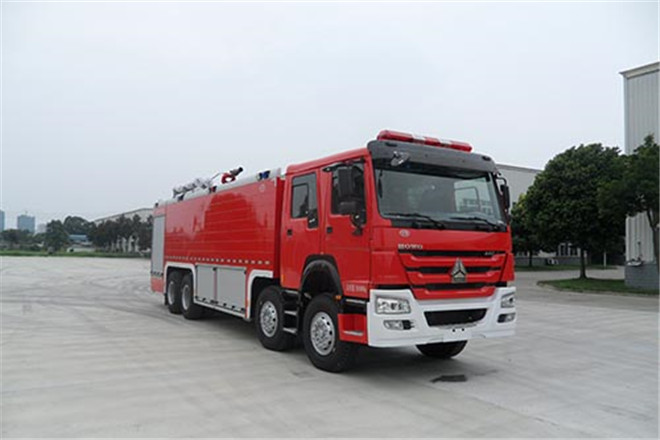

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 11820mm |
| Width | 2500mm |
| Height | 3820mm |
| Curb Weight | 17350kg |
| Gross Weight | 39100kg |
| Seats | 2+4 |
| Max Speed | 85km/h |
| Chassis | |
| Chassis Model | ZZ5437V4667E1 |
| Front/Rear Overhang | 1500/2570mm |
| Number of Leaf Springs | 11/11/12, left 14 right 13/left 14 right 13/12 |
| Number of Axles | 4 |
| Wheelbase | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400,2150+4300+1350,2150+4275+1400mm |
| Axle Load | 7200/7900/12000/12000kg |
| Front Wheel Track | 2022/2022mm |
| Rear Wheel Track | 1830/1830mm |
| Approaching/Departuring Angle | 14/11° |
| Tire | |
| Number of Tires | 12 |
| Tire | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20 |
| Engine | |
| Model | D10.34-50,D10.38-50,MC11.36-50,MC11.40-50,MC11.44-50 |
| Power | 249,276,268,297,327kW |
| Brand | China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd;China National Heavy Duty Truck Group Co., Ltd |
| Displacement | 9726,9726,10518,10518,10518ml |
