Product Details
| Basic Information | |

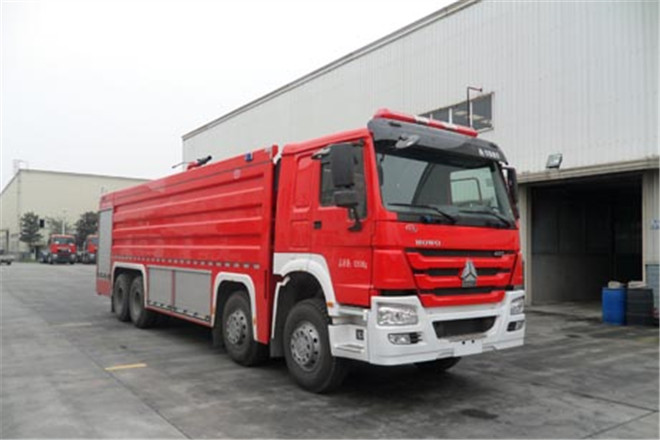

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 |
| Length | 11515mm |
| Width | 2500mm |
| Height | 3770mm |
| Curb Weight | 17920kg |
| Gross Weight | 42820kg |
| Seats | 2 |
| Max Speed | 80km/h |
| Chassis | |
| Chassis Model | ZZ5437V4667D1 |
| Front/Rear Overhang | 1500/2265mm |
| Number of Leaf Springs | 11/11/12, left 14 right 13/left 14 right 13/12 |
| Number of Axles | 4 |
| Wheelbase | 2150+4600+1350,1800+4600+1350mm |
| Axle Load | 8480/8370/12985/12985kg |
| Front Wheel Track | 2022/2022mm |
| Rear Wheel Track | 1830/1830mm |
| Approaching/Departuring Angle | 16/14° |
| Tire | |
| Number of Tires | 12 |
| Tire | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20 |
| Engine | |
| Model | D12.42-40,D12.46-40,MC11.36-40,MC11.40-40,MC11.44-40 |
| Power | 309,339,268,297,327kW |
| Brand | China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd. |
| Displacement | 11596,11596,10518,10518,10518ml |
