Product Details
| Basic Information | |

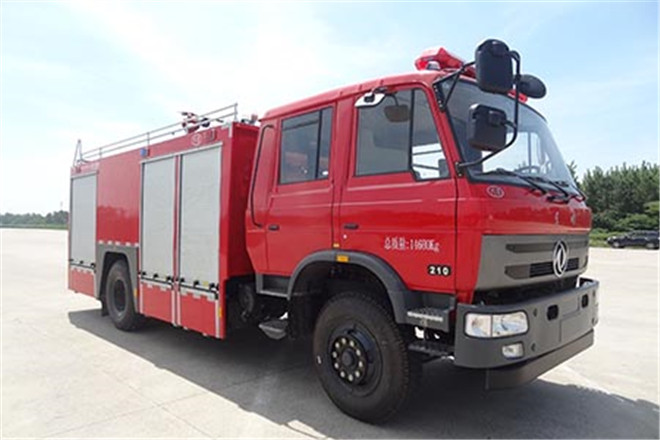

| Usage | Fire Extinguishing Truck |
| Fuel Type | Diesel |
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards |
| Length | 8030mm |
| Width | 2500mm |
| Height | 3400mm |
| Curb Weight | 9540kg |
| Gross Weight | 14680kg |
| Seats | 2+4 |
| Max Speed | 90km/h |
| Chassis | |
| Chassis Model | EQ1160HD4GJ1 |
| Front/Rear Overhang | 1250/2280mm |
| Number of Leaf Springs | 9/12+10 |
| Number of Axles | 2 |
| Wheelbase | 4700,5100,5150,5000,4500mm |
| Axle Load | 4710/9970kg |
| Front Wheel Track | 1940,1900mm |
| Rear Wheel Track | 1860,1800mm |
| Approaching/Departuring Angle | 25/10° |
| Tire | |
| Number of Tires | 6 |
| Tire | 10.00-20,10.00R20 |
| Engine | |
| Model | ISDe180 40,ISDe200 40,ISDe210 40,EQH180-40,YC6J200-42,YC6J180-42,ISB190 40,ISDe245 40,ISB210 40 |
| Power | 132,140,155,132,147,132,140,180,155kW |
| Brand | Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Trucks Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd. ;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement | 4500,4500,6700,4752,6500,6500,5900,6700,5900ml |
