Product Details
| Basic Information | |

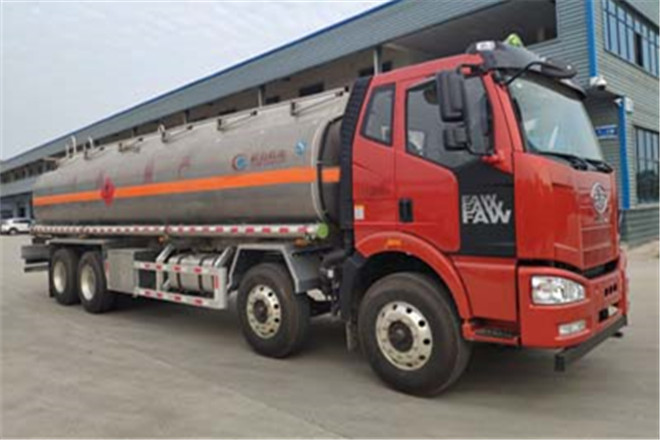

| Usage | Aluminum Alloy Oil Tanker |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 11760mm |
| Width | 2500mm |
| Height | 3505mm |
| Curb Weight | 10805kg |
| Gross Weight | 32000kg |
| Seats | 2,3 |
| Max Speed | 79km/h |
| Chassis | |
| Chassis Model | CA5320GYYP63K1L6T4E5 |
| Front/Rear Overhang | 1460/2450mm |
| Number of Leaf Springs | 3/3/- |
| Number of Axles | 4 |
| Wheelbase | 1950+4550+1350,1900+4500+1350,1900+4200+1350,2100+4000+1350mm |
| Axle Load | 6500/6500/19000(two axles)kg |
| Front Wheel Track | 1987/1987mm |
| Rear Wheel Track | 1860/1860,1878/1878,1900/1900mm |
| Approaching/Departuring Angle | 13/11° |
| Tire | |
| Number of Tires | 12 |
| Tire | 10.00R20,11.00R20,12R22.5,295/80R22.5 |
| Engine | |
| Model | CA6DK1-28E5,CA6DK1-32E51,CA6DK1-28E51,CA6DL1-32E5,CA6DM2-39E51 |
| Power | 209,239,209,238,290kW |
| Brand | China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation |
| Displacement | 7146,7146,7146,7700,11050ml |
