Product Details
| Basic Information | |

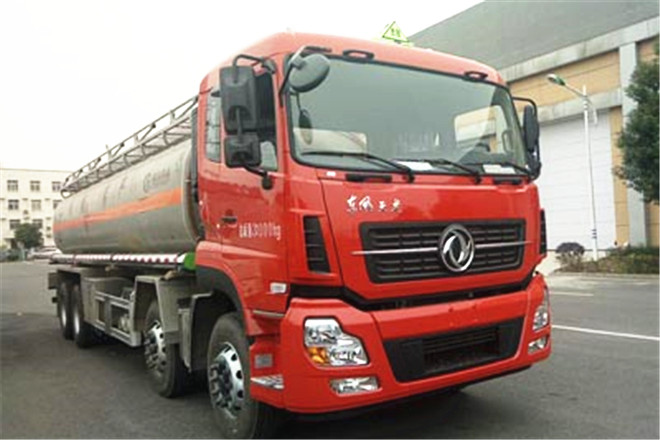

| Usage | Aluminum Alloy Oil Tanker |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 11900mm |
| Width | 2550mm |
| Height | 3800mm |
| Curb Weight | 11605kg |
| Gross Weight | 32000kg |
| Seats | 3，2 |
| Max Speed | 80km/h |
| Chassis | |
| Chassis Model | DFH1320AX2V |
| Front/Rear Overhang | 1500/2350,1500/2600mm |
| Number of Leaf Springs | 3/3/-/-,3/3/2+-/2+-,2/2/-/- |
| Number of Axles | 4 |
| Wheelbase | 2050+4600+1400,2050+4400+1350mm |
| Axle Load | 6500/6500/19000(two axles)kg |
| Front Wheel Track | 1965/1965,2040/2040mm |
| Rear Wheel Track | 1880/1880,1860/1860mm |
| Approaching/Departuring Angle | 22/12° |
| Tire | |
| Number of Tires | 12 |
| Tire | 295/80R22.5 16PR,295/80R22.5 18PR |
| Engine | |
| Model | DDi75S315-50,ISL8.9-292E50A,ISL8.9-340E51A,DDi75S350-50 |
| Power | 232,215,252,257kW |
| Brand | Dongfeng Trucks Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Trucks Co., Ltd. |
| Displacement | 7530,8900,8900,7530ml |
