Product Details
| Basic Information | |

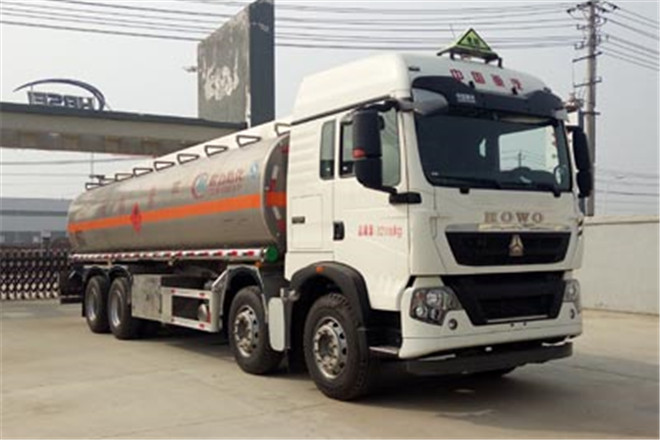

| Usage | Aluminum Alloy Oil Tanker |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 11840mm |
| Width | 2500mm |
| Height | 3400mm |
| Curb Weight | 11405kg |
| Gross Weight | 32000kg |
| Seats | 2,3 |
| Max Speed | 80km/h |
| Chassis | |
| Chassis Model | ZZ1327N466GE1 |
| Front/Rear Overhang | 1430/2635mm |
| Number of Leaf Springs | 11/11/-/-,3/3/-/- |
| Number of Axles | 4 |
| Wheelbase | 1800+3775+1400,1800+4575+1400,1800+3200+1400mm |
| Axle Load | 6500/7000/18500(two axles)kg |
| Front Wheel Track | 2015/2015,2035/2035mm |
| Rear Wheel Track | 1830/1830,1850/1850mm |
| Approaching/Departuring Angle | 19/10° |
| Tire | |
| Number of Tires | 12 |
| Tire | 295/80R22.5,12R22.5,11.00R20 |
| Engine | |
| Model | MC07.28-50,MC07.31-50,MC07.34-50,MC07.35-50,MC09.38-50 |
| Power | 206,228,248,254,276kW |
| Brand | China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd. |
| Displacement | 6870,6870,6870,6870,8765ml |
