Product Details
| Basic Information | |

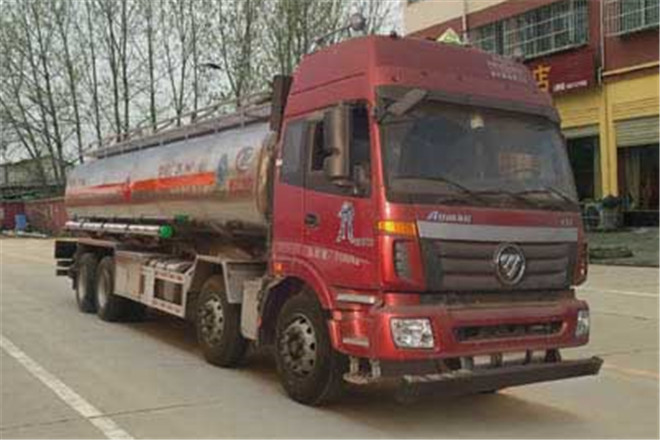

| Usage | Aluminum Alloy Oil Tanker |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length | 11900mm |
| Width | 2500mm |
| Height | 3440mm |
| Curb Weight | 12150kg |
| Gross Weight | 31000kg |
| Seats | 2 |
| Max Speed | 79km/h |
| Chassis | |
| Chassis Model | BJ5313GYY-AB |
| Front/Rear Overhang | 1532/2518mm |
| Number of Leaf Springs | 3/3/12,13/14/12,10/10/10,13/14/10,3/3/5,10/10/12,4/4/12,3/3/4 |
| Number of Axles | 4 |
| Wheelbase | 2000+4500+1350,2000+4525+1300mm |
| Axle Load | 6500/6500/18000(two axles)kg |
| Front Wheel Track | 2010/2010mm |
| Rear Wheel Track | 1860/1860mm |
| Approaching/Departuring Angle | 13/11° |
| Tire | |
| Number of Tires | 12 |
| Tire | 10.00R20 18PR,11.00R20 18PR,11.00R20 16PR,11R22.5 18PR,12R22.5 18PR,12R22.5 16PR,295/80R22.5 18PR,295/80R22.5 16PR |
| Engine | |
| Model | ISGe5-280,ISGe5-300,ISGe5-320,ISGe5-360 |
| Power | 205,220,235,265kW |
| Brand | Beijing Foton Cummins Engine Co., Ltd.;Beijing Foton Cummins Engine Co., Ltd.;Beijing Foton Cummins Engine Co., Ltd.;Beijing Foton Cummins Engine Co., Ltd. |
| Displacement | 10500,10500,10500,11800ml |
