Product Details
| Basic Information | |

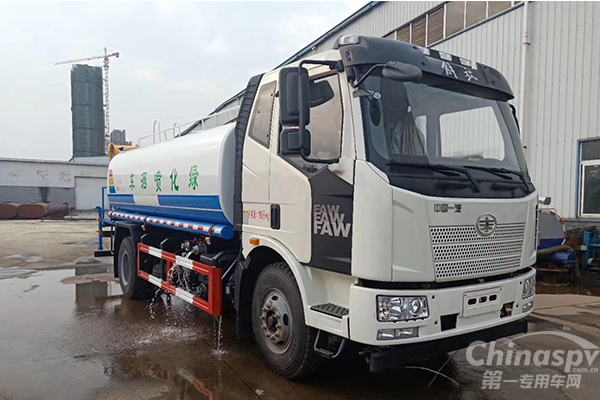

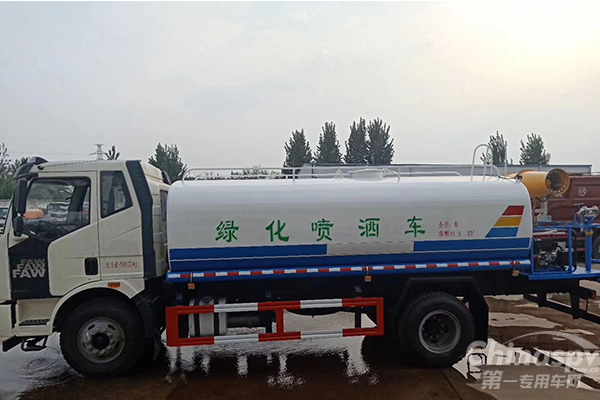

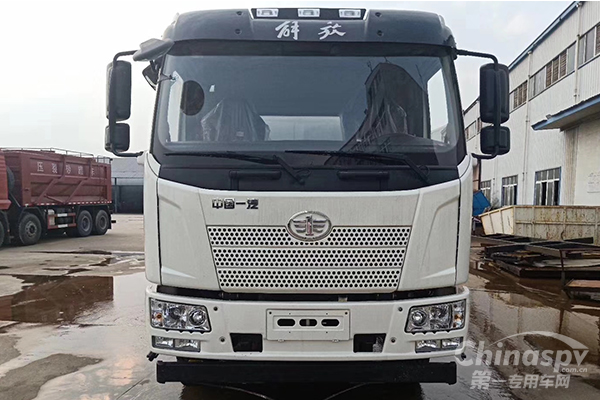

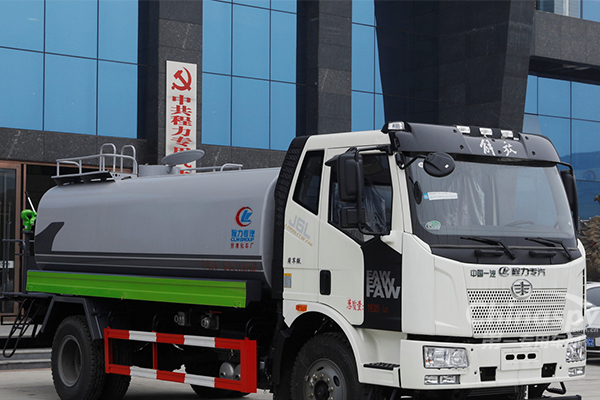

| Usage | Street Sprinkler |
| Model | CLW5180GSSC6 |
| Gross Weight | 18000(kg) |
| Volume | 10.78(cubic meter) |
| Rated Load | 10270,10335(Kg) |
| Curb Weight | 7535(kg) |
| Dimensions | 8200×2500×3200(mm) |
| Approaching/Departuring Angle | 17/12(°) |
| Front/Rear Overhang | 1400/2300,1400/2100 (mm) |
| Number of Axles | 2 |
| Wheelbase | 5300,5000,4700,4500,5600,5800,4200,4000,3800(mm) |
| Axle Load | 6500/11500(kg) |
| Max Speed | 89(km/h) |
| Chassis type | CA1180P62K1L2A1E6Z |
| Number of Tires | 6 |
| Number of Leaf Spring | 10/12+8,12/12+8,13/12+8,7/7+6,9/12+8,12/10+9,7/7+3 |
| Tire | 10.00R20,11.00R20,295/80R22.5,275/80R22.5 |
| Front Wheel Track | 1928,1827,1950,1938(mm) |
| Rear Wheel Track | 1878,1860(mm) |
| Chassis Discharge Standard | GB3847-2005,GB17691-2018 National Ⅵ Emission Standards |
| Fuel Type | Diesel |
| Engine Model | CA4DK1-18E6, CA4DK1-22E6, CA6DH1-22E6, CA6DH1-24E6, D6.7NS6B230 |
